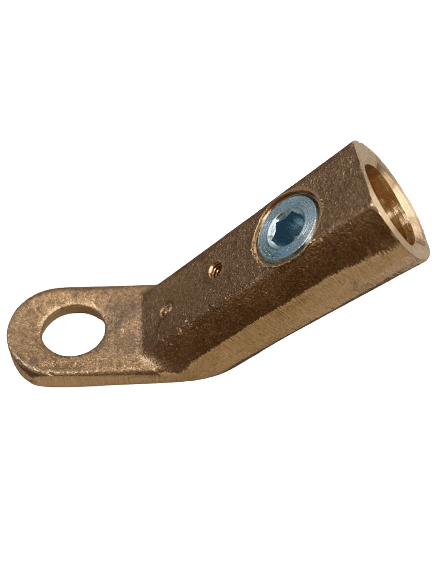

LM-2040A CABLE LUG ANGLED

#L07060Manufacturer: LENCO
Manufacturer #:07060

In-Stock

LENCO Cable Lugs Make +Positive Cable Connection to the Welder
These mechanical lugs replace the ordinary solder lug for attaching welding cable to a welder. They are heavy duty cast copper alloy to take today’s
higher amperages. Cable is easily attached using large oval-point screw connection driven down with a ¼” (6.35mm) allen wrench.

LM-610A
Angle 45°
Cable Capacity No. 6 thru 1/0 (16-50mm²)
4 oz. (115g)
Stud Hole Size 17/32” (13.5mm)

LM-610S
Straight
Cable Capacity No. 6 thru 1/0 (16-50mm²)
4 oz. (115g)
Stud Hole Size 17/32” (13.5mm)

LM-2040A
Angle 45°
Cable Capacity No. 2/0 thru 4/0 (50-95mm²)
7 oz. (200g)
Stud Hole Size 17/32” (13.5mm)

LM-2040S
Straight
Cable Capacity No. 2/0 thru 4/0 (50-95mm²)
7 oz. (200g)
Stud Hole Size 17/32” (13.5mm)

LM-2040S-HD
Straight
Cable Capacity No. 2/0 thru 4/0 (50-95mm²)
20 oz. (570g)
Stud Hole Size 21/32” (16.8mm)

LM-2040S-HD-34
Straight
Cable Capacity No. 2/0 thru 4/0 (50-95mm²)
20 oz. (570g)
Stud Hole Size 25/32” (20mm)

LM-610AI
Straight Insulated
Cable Capacity No. 6 thru 1/0 (16-50mm²)
5 oz. (140g)
Stud Hole Size 17/32” (13.5mm)

LM-610SI
Straight Insulated
Cable Capacity No. 6 thru 1/0 (16-50mm²)
5 oz. (140g)
Stud Hole Size 17/32” (13.5mm)

LM-2040AI
Angle 45° Insulated
Cable Capacity 2/0 thru 4/0 (50-95mm²)
8 oz. (230g)
Stud Hole Size 17/32” (13.5mm)

LM-2040SI
Straight Insulated
Cable Capacity 2/0 thru 4/0 (50-95mm²)
8 oz. (230g)
Stud Hole Size 17/32” (13.5mm)

LM-2040SI-HD
Straight Insulated
Cable Capacity 2/0 thru 4/0 (50-95mm²)
21 oz. (600g)
Stud Hole Size 21/32” (16.8mm)

LM-2040SI-HD-34
Straight Insulated
Cable Capacity 2/0 thru 4/0 (50-95mm²)
21 oz. (600g)
Stud Hole Size 25/32” (20mm)

In stock
