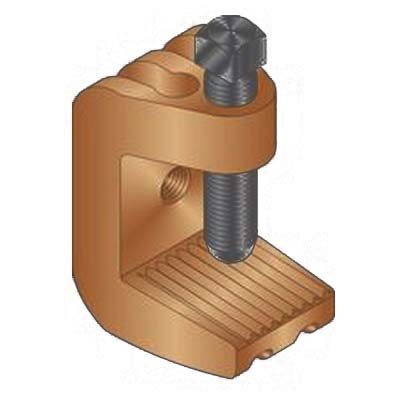

G-1500-34GROUND CLAMP

HEAVY DUTY GROUND CLAMPS

Apply up to 2,000 lbs. (907kg) pressure with the heavy duty pressure screw. The “G” and G-1500 are cast out of a heavy alloy material designed for high
amperage applications. The design maximizes surface contact area which provides cool and efficient operation. The G-1500 can also be used with
LENCO’s R-4C & LRG Series Rotary Grounds

Model G-1500-34

1500 Amp Capacity
3/4″-10 F thread – Cable Connection
3″ Jaw Opening
3″ Throat Depth
9.5 lbs.

In stock
