G-50 600 AMP C-TYPE (1/2-13) G-50 600 AMP C-TYPE (1/2-13)

HEAVY DUTY GROUND CLAMPS

Apply up to 2,000 lbs. (907kg) pressure with the heavy duty pressure screw. The “G” and G-1500 are cast out of a heavy alloy material designed for high
amperage applications. The design maximizes surface contact area which provides cool and efficient operation. The G-1500 can also be used with
LENCO’s R-4C & LRG Series Rotary Grounds

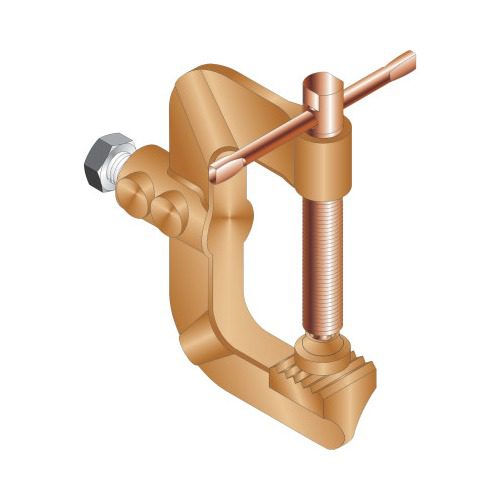

Model G-50

600 Amp Capacity
1/2″-13 Nut – Cable Connection
3/0 – 4/0 Cable Capacity
3-3/8″ Jaw Opening
3-1/8″ Throat Depth
70.4 oz.

In stock
