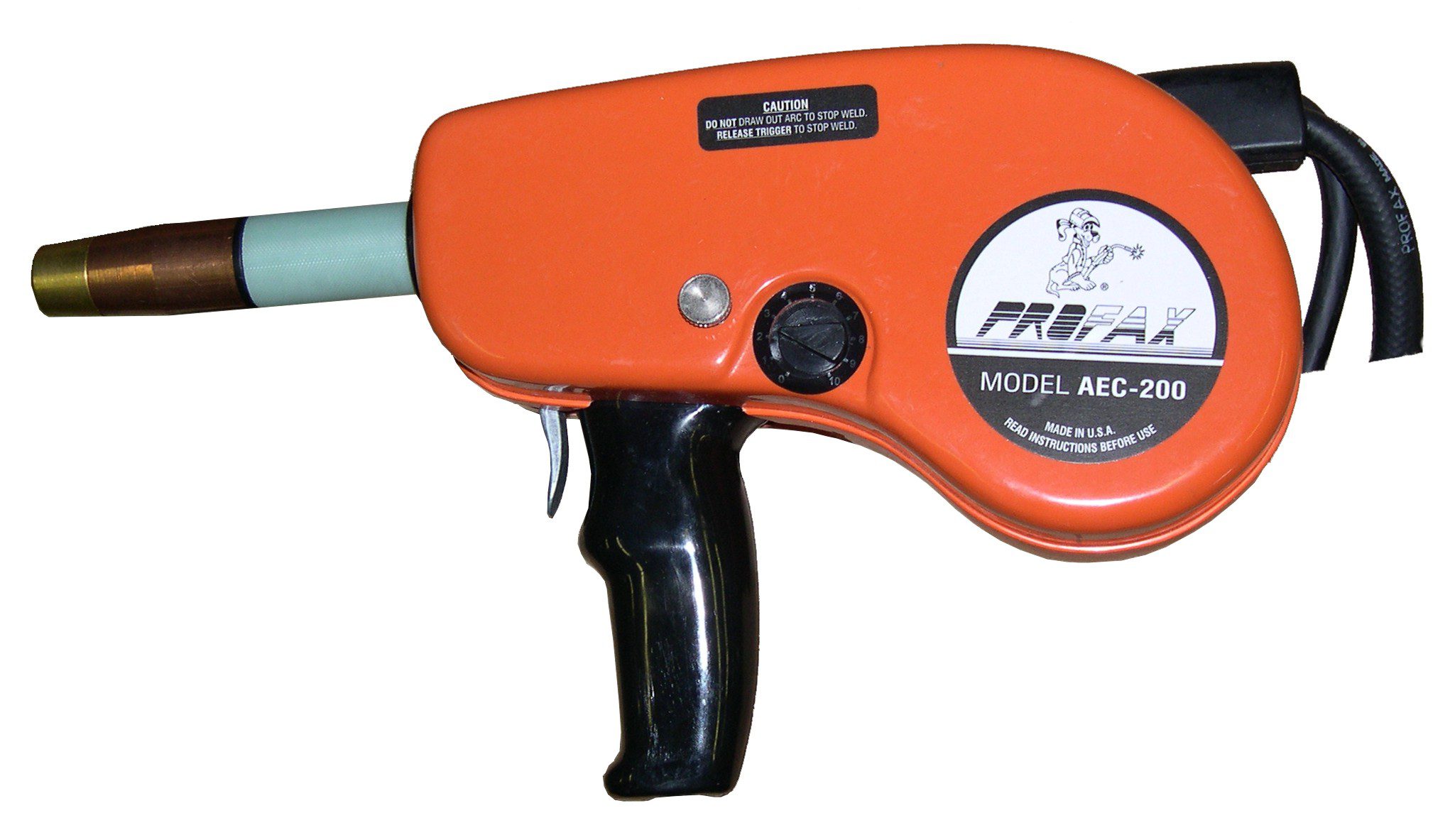

SPOOLGUN W/50' CABLE ASSY
Manufacturer #:AEC200-4
PROFAX HAS GIVEN THE CLASSIC DESIGN OF THE AEC 200 SPOOL GUN A NEW SOLID STATE PUNCH. DESIGNED FOR CONSTANT VOLTAGE
POWER SOURCES, THIS NEW PUNCH WILL PROVIDE:
• ONE MOTOR FOR .030 THROUGH 1/16” ALUMINUM AND .023 THROUGH .045 HARD WIRES.
• NO MORE CHANGING MOTOR RATIO’S
• NO MORE RHEOSTAT TO GET HOT OR BURN OUT
• 30 TO 800 INCH PER MINUTE CAPABILITY
• 50’ GUN CABLE LENGTH STANDARD
• SOLID STATE CONTROL PROVIDES:
TRUE CONSTANT SPEED
LONGER MOTOR LIFE
SMOOTHER WIRE FEEDING
HIGHER MOTOR TORQUE
Input power – 115 VAC 50/60 Hz.
Duty Cycle – 50% at 250 amps, 100% at 200 amps (Argon or Helium)
Wire Capacity – .023″ to 1/16″ aluminum or .023″-.045″ hard wire
Wire speed – 30 to 800 IPM
Dimensions – 8.25″ H, 3″ W, 15″ L
Weight – 26 lbs. net / 29 lbs. shipping
The AEC 200-4 Spool Gun and AEC 200-4C control are interfaced together to give the improved SOLID STATE motor control performance to the
Classic AEC 200 Spool Gun design. This system can be connected to any adequately sized CONSTANT VOLTAGE welding power source that provides
115V or 24V AC 50/60 Hz. auxiliary power and will operate 115 volt feedback or contact closure contactor circuits. See owners and installation manual
for complete details.
AEC 200-4 Spool Gun w/50′ cable assembly for use w/ AEC 200-4C solid state control box
AEC 200-4C Solid state control box for use w/ AEC 200-4 Spool Gun
