SHARPIE TUNG. GRIND. CORDLESSADJ.15-45DEG CORDLESS W/BAT

#A-PTGK-DXCLManufacturer: ARCZON
Manufacturer #:PTGK-DXCL

Out-of-Stock

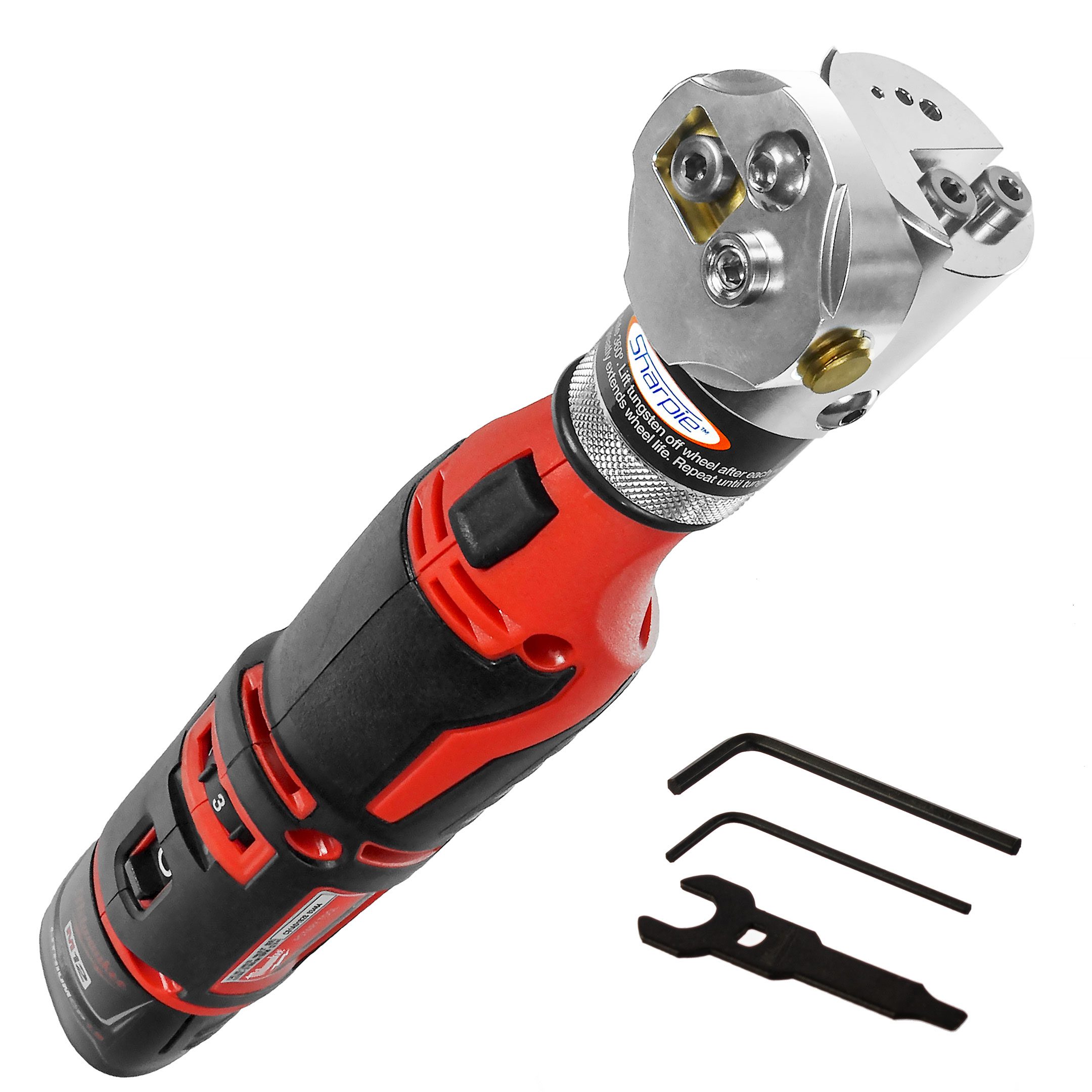

Cordless Sharpie DXCL™ Tungsten Grinder, Model A-PTGK-XXX
Beautifully Built Machine That Delivers // Diamond Ground Tapers // Tip Flats // Cuts Tungsten
The Sharpie DXCL™ tungsten electrode grinder has an adjustable grind angle from 15° -to- 45° for virtually any TIG welding application. Sharpie™ grinders deliver quick and consistent electrode grinds for snappy arc starts, better puddle control and improved weld quality.

The machines double-sided diamond wheel easily grinds tungsten electrode sizes, **.040″ (1.0mm)**, 1/16″ (1.6mm), 3/32″ (2.4mm) and 1/8″ (3.2mm). — Use Heavy-Duty wheel for continuous grinding of 1/8″ (3.2mm) tungsten — **Note: .040″ (1.0mm) collet sold separately.

High Quality Tool:
You are investing in a quality product that will deliver years of service. Each Sharpie™ is built to demanding specifications, with the finest globally sourced Milwaukee M12 Cordless motor, industrial grade double-sided diamond wheel. The majority of machined parts are made in the USA and each machine is built by hand in our Vista California factory!

Upgrade to a Pro Kit & Save 35% on Popular Accessories:
Included Accessories DX Grinder Only DX Pro Kit
Part Number A-PTGK-DXCL A-PTGK-DXCL-K
DX Grinder (15°-45° Adjustable Grind Angle)

.040″ (1.0mm) Collet –

1/16″ (1.6mm) Collet

3/32″ (2.4mm) Collet

1/8″ (3.2mm) Collet

M12 Lithium-Ion Battery

M12 Lithium-Ion
Battery Charger

Replacement Grinding Wheel –

Arc-Saber Tungsten Storage Container –

Pro Series TIG Calculator –

1. Precise Diamond Ground Taper:
Sharpie grinders deliver quick and consistent adjustable grind angle from 15° -to- 45° for snappy arc starts, better puddle control and improved weld quality. The double-sided diamond wheel easily grinds tungsten electrode sizes, .040″**, 1/16″, 3/32″ and 1/8″ (1.0mm, 1.6mm, 2.4mm and 3.2mm). **Note: .040″ (1.0mm) collet sold separately.

2. Tip Flat Option:
Tungsten electrodes ground to a sharp point are proven to burn off and cause inclusions in your weld. By Removing the point & adding a tip flat, you get better arc starts, longer electrode tip life & reduced weld contamination.

3. Cut-Off/Score Option:
The built-in cut-off or scoring option allows you to cut & remove only contaminated portions of the electrode. No more bending or breaking electrodes which causes splintering of the tungsten, reducing electrode performance.

Safe & Easy To Use:
Set your machine up for the job at hand & grind electrodes in the shop or in the field. Enclosed grinding wheel eliminates safety issues common with “side” or “wheel” grinders which can grab the electrode and shoot it back at the operator.

Save Time & Money:
Diamond ground electrodes reduce tungsten consumption and waste. Stop wearing out belts on your sander & grinding deep grooves in your bench grinder wheels. Your shop will be cleaner, safer and more productive. The reversible long-life diamond wheel means low replacement part costs.

Weld Like A Pro Tip™
Frequently re-grinding worn electrode tips improves weld quality & lowers tungsten usage. Waiting until the tip is completely eroded or contaminated, requires grinding off more tungsten material, resulting in higher tungsten usage, costing you time & money.

Specifications:

Minimum Tungsten Grind Length 1-1/4” (31.7mm)
Adjustable Grind Angle From 15° – 45°
Voltage 12V
Charger Primary US 120V ~ 60 Hz 750 mA
Charger Secondary Output 12 V = 3.0 A
Motor Length 9″ (229mm)
Motor Length w/ Head 11″ (279mm)
Weight 0.9 lbs (0.4kg)
Charge Time 30 Minutes
No Load RPM 5,000-32,000
