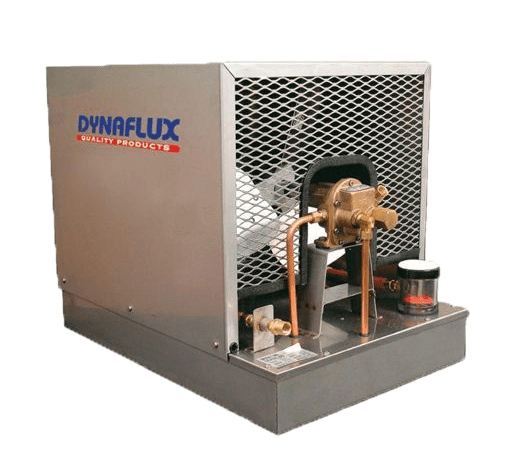

WATER COOLING SYSTEM VANE PUMP

Specifications

• Factory set at 50 psi adjustable to 80 psi
• 3 gallon reservoir
• 115 or 230 VAC / 1 ph-50 / 60 Hz
• 5.6 / 2.8 amp: 60 Hz
• 15,000 BTU
• Dimensions:23″ L x 11″ W x 14.75″ H
• 1/4″ FPT(water in /out) with 5/8″LH Standard Inert Gas Fitting
• Net weight: 42 lbs/19 kg
• Foam packed for UPS shipment

R1100 V: Rotary VANE Pump
1.7 gpm at 50 psi

Equipment

MIG Guns  –  Up to 750 amps

TIG Torches  –  Up to 750 amps

Plasma Welder/Cutters  –  Up to 200 amps

Resistance Welders  –  Up to 75 KVA

Induction Welding  –  Up to 5 KW

In stock
