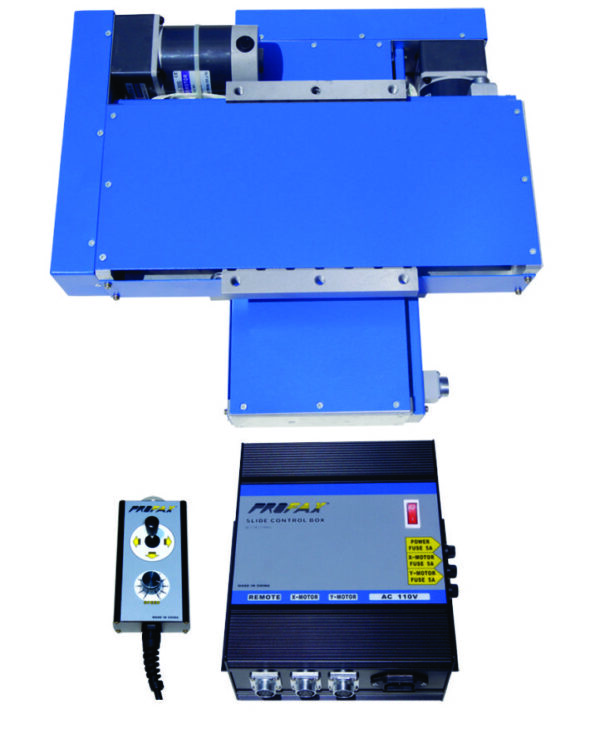

Motorized Welding Cross Slides 4" x 4" WCS-44M

Motorized Welding Cross Slides

Specifications:
• Travel: 3-15/16″ x 3-15/16″
• Slide Adjustment: Variable 0-10 i.p.m.
• Control: Joystick Pendant
• Load Capacity: 55 lbs. @ 4” Centre of Gravity
• Motors: 24 VDC
• Input Power: 115 VAC
• Dimensions (WxHxD): 11” x 11” x 5”
• Weight of Slides: 30 lbs.
• Weight of Slides & Controls: 42 lbs.
• Back of Slide Mount: 4 EA. M8 Pre-Drilled Holes
• Welding Head Mounting: 4 M8 – 1.25 Tapped Holes
• Driven Screw: 16 mm (Approx. 5/8″)
• Load Bearing Guide Rods: 16 mm (Approx. 5/8″)

In stock
