Atlas Model 100 welding positioner can increase production, cut costs and make welding easier for the welder.
The Atlas Model 100 Welding Positioner is a compact machine ideally suited for those jobs requiring rotary fixturing and positioning. lts low profile keeps the work down to a comfortable level for the welder working at
a standard height work bench.
The Model 100 will handle properly balanced loads of up to 100 pounds when in the horizontal position. The heavy duty grounding circuit allows use of stick electrode,
MIG or TIG welding processes.
Desired operating speed is set on the front control panel by adjusting the solid state constant torque and speed control dial.
This unit comes standard with an on-off foot control for hands free starting and stopping. The optional rheostat-type foot switch (XT-0-06) will also control the on/off
function of the model 100 and allows the operator to feather the table speed where required. Also located on the front panel is a “Forward-Otf-Reverse” rotation selector switch, and an easily accessible 2 amp fuse
for motor overload protection.
The Model 100 Positioner features a rugged gearhead motor and hardened precision ground secondary gearing. The louvered end caps are easily removable for servicing the motor brushes, etc.

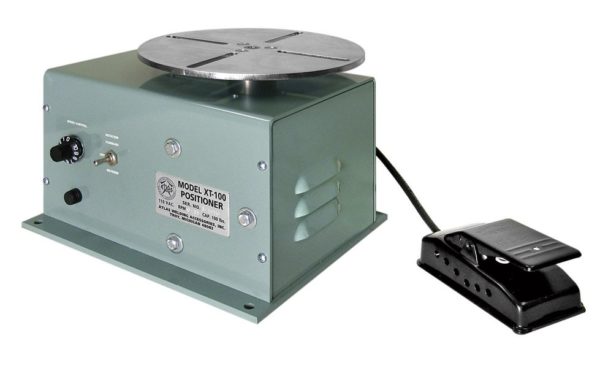

Atlas Model XT-100 Welding Positioner (XT-100) is a compact turntable suited for smaller weldments up to 100 pounds, properly balanced, and with the table in the horizontal position.
The standard 9″ table is driven by a DC permanent magnet gear head motor and precision ground and hardened secondary gearing. The grounding circuit handles up to 200 amps of welding current.
Model XT-100 is suitable for stick electrode, MIG or TIG processes and is high frequency protected. Operating speed is set on the front control panel by adjusting the solid state speed control. The optional variable speed foot switch initiates table rotation and also allows the operator to feather the speed from slow, up to the maximum speed dialed in at the main speed control. A forward-off reverse switch is also provided along with an easily accessible 2 amp fuse for motor overload protection.
XT-100 (Standard) Low Speed 2.5 RPM – Max Speed 11.0 RPM
XT-1004-2 (Optional) Low Speed 0.5 RPM – Max Speed 2.8 RPM
XT-100-0-4 (Optional) Low Speed 1.0 RPM – Max Speed 4.7 RPM
XT-100-0-18 (Optional) Low Speed 4.5 RPM – Max Speed 18.5 RPM
Motor – DC Permanent magnet motor
Power Requirement – 115 VAC 60 cycle @ 1 .3 amps. 10′ conductor cord with plug supplied.
Speed Control – Solid State electronic feedback
Start/Stop Control – Foot switch with 10′ cord (XT-0-18)
Dimensions – 7.5″ H, 11.5″ W, 9″ D
Net Weight – 32 lbs’
Shipplng Weight – 34 lbs.
*Listed Table Speeds may vary + 10%. Please specify speed desired when ordering.
