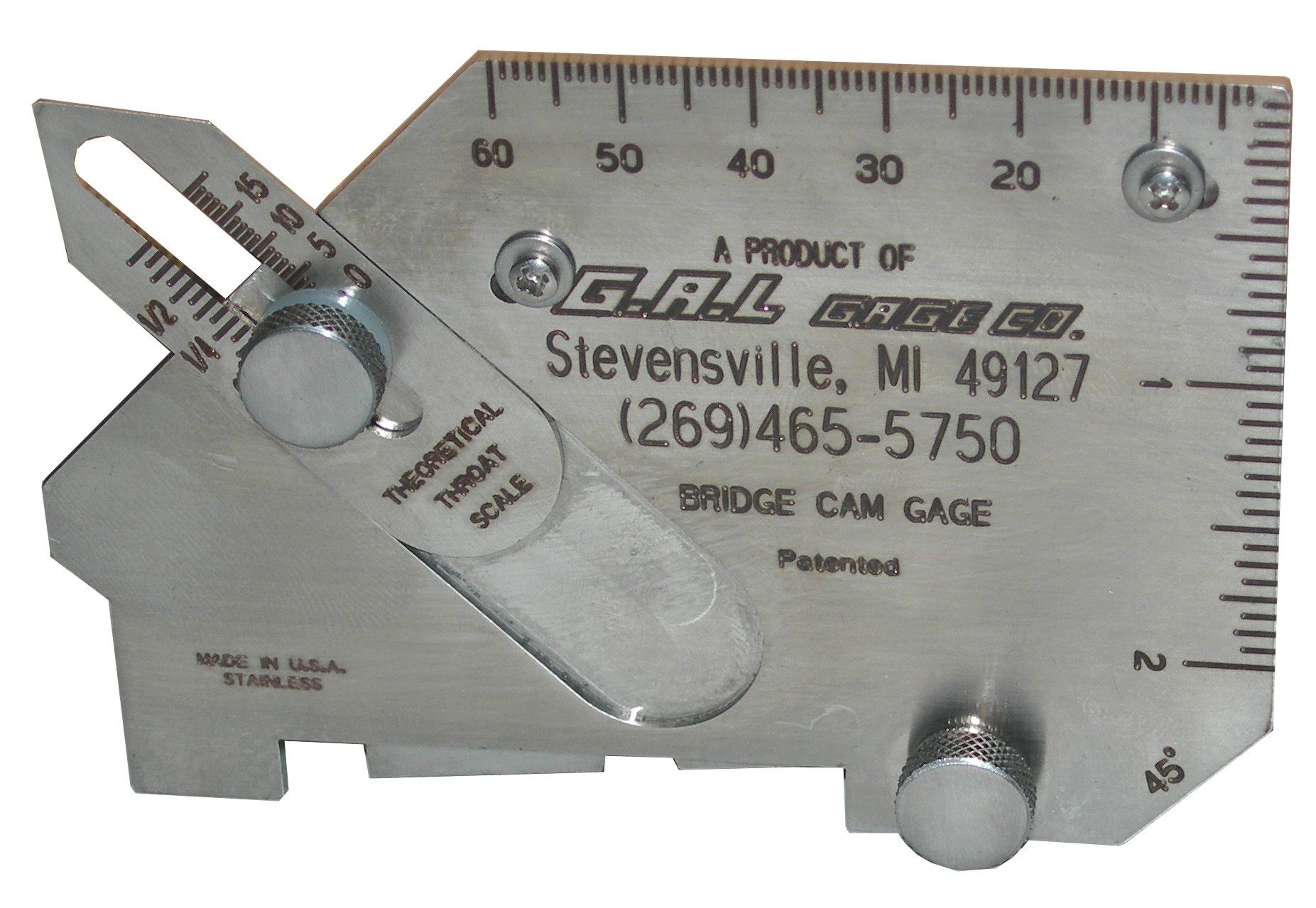

CAMBRIDGE TYPE GAUGE
The following measurements are possible either in inches or millimeters.
• Angle of preparation, 0 to 60° • Fillet weld throat size
• Excess weld metal (capping size) • Fillet weld leg length
• Depth of undercut • Misalignment (High-Low)
• Depth of pitting
